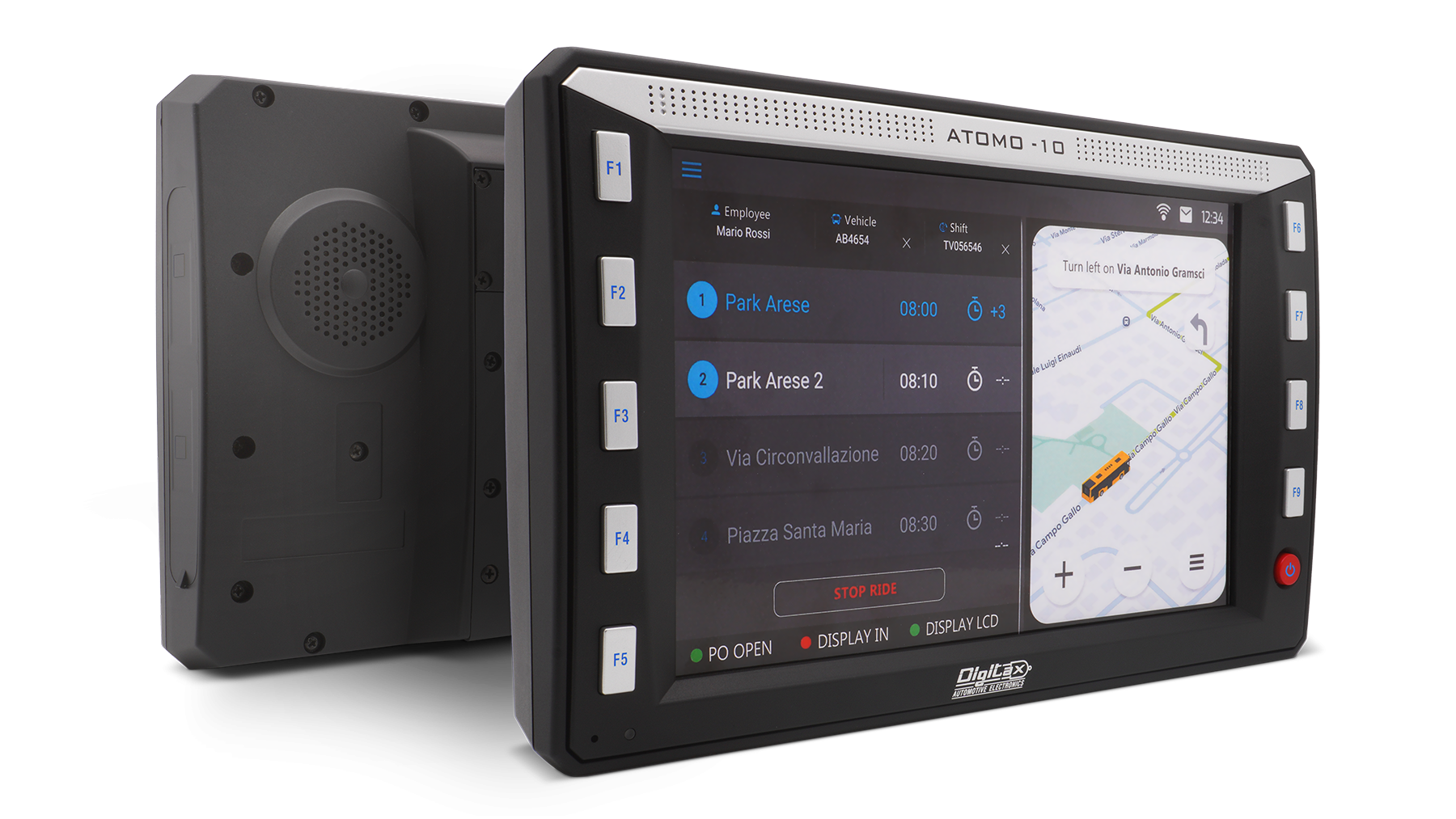

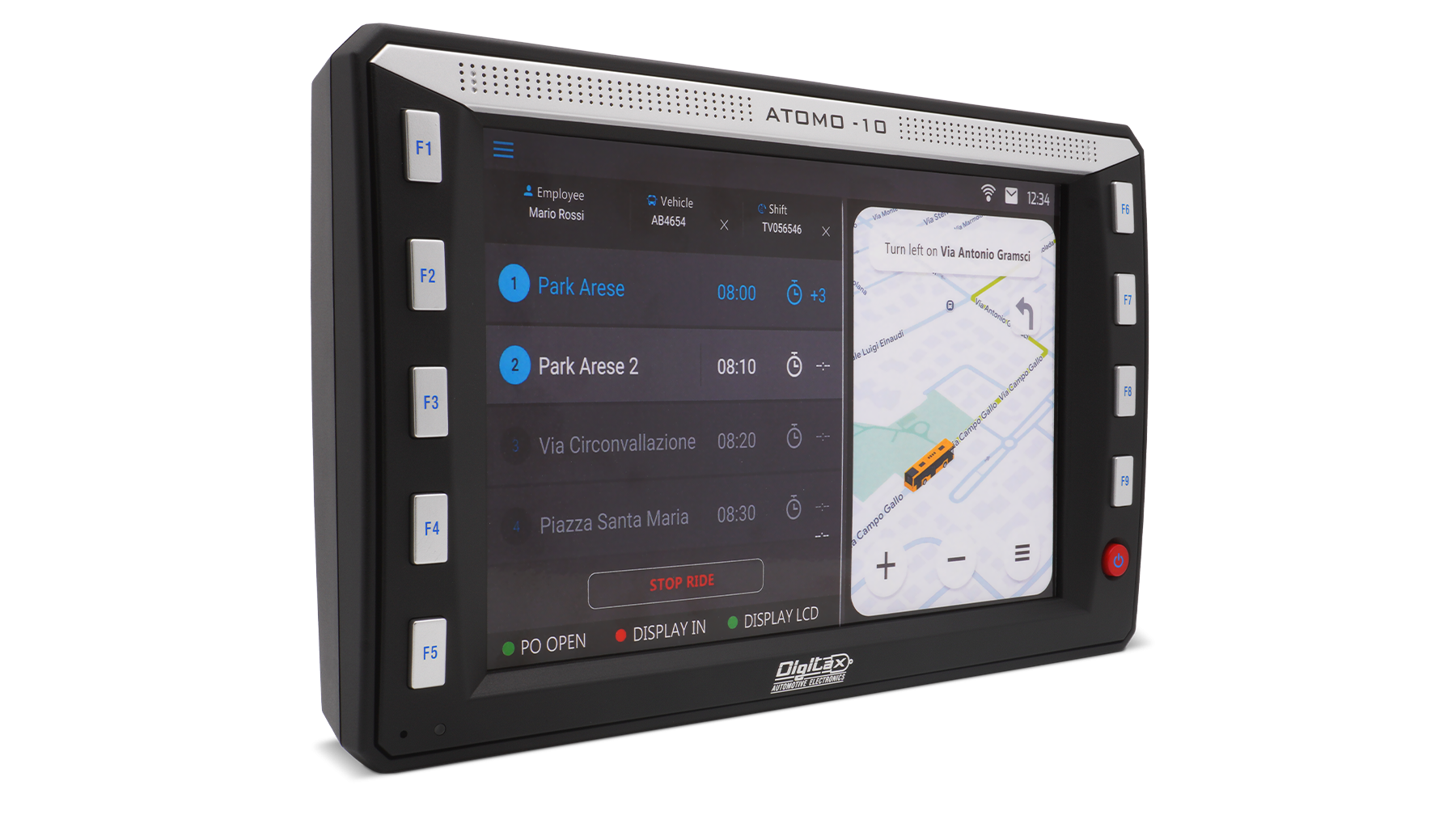

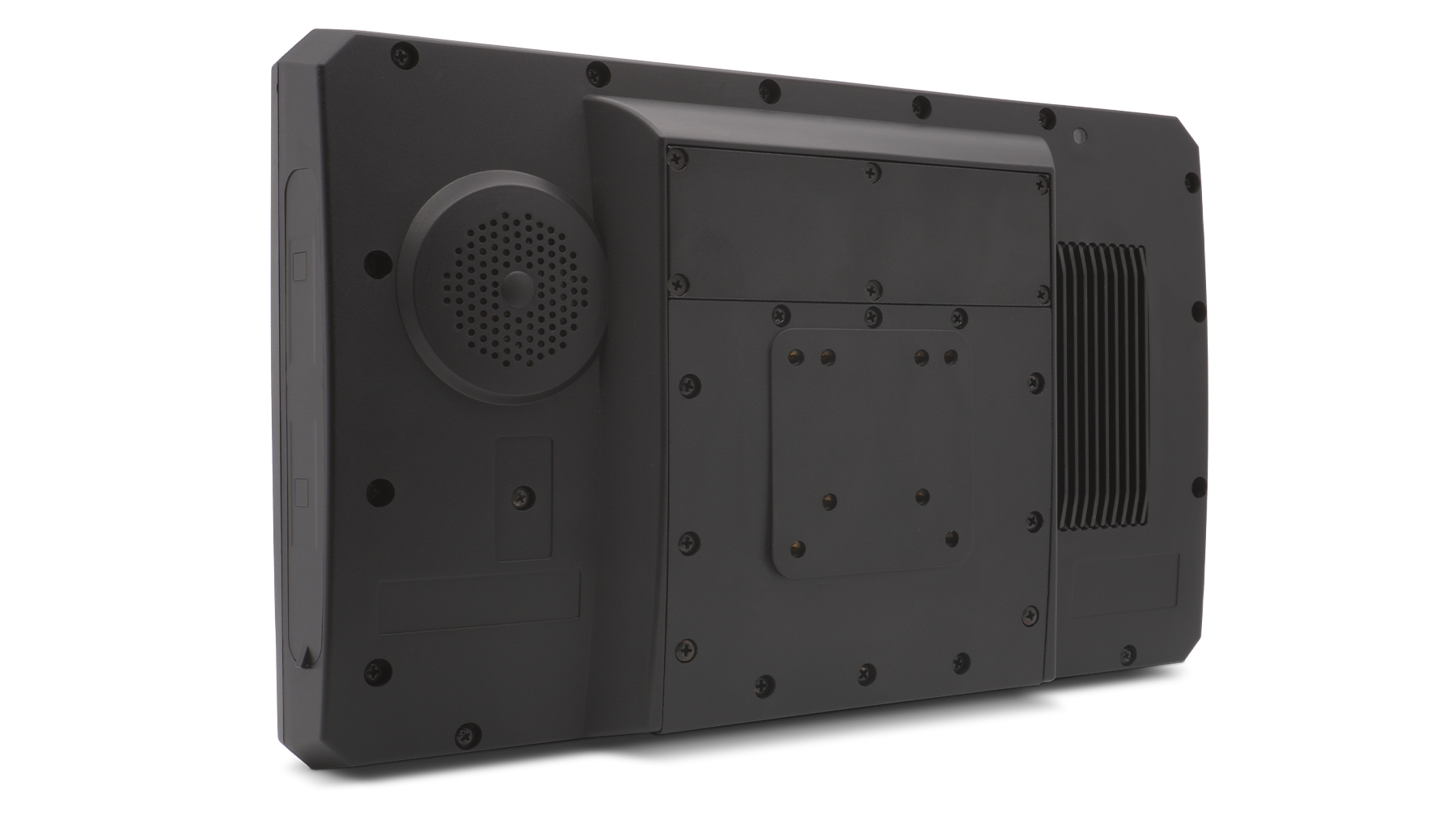

Atomo 10 MDT

The new ATOMO – 10 by Digitax is the ideal solution for companies and system integrators in need of a professional, certified, and modular Mobile Data Terminal (MDT) suitable for public transport, fleet management, and special vehicles.

Available as a stand-alone MDT (ATOMO–10 MDT) or an integrated ALL-IN-ONE system (ATOMO–10 ETS), it includes Digitax validators and a printer, ensuring maximum flexibility. It supports standard protocols for seamless integration with third-party devices. The ATOMO – 10 MDT features an Android Platform On Module, enabling continuous updates for hardware, OS, and connectivity, including 4G/5G, Wi-Fi, and Bluetooth. It offers a customizable user interface, navigation, and mission management. Digitax validators are available as onboard or remote units, with customizable colors.

Thanks to the centralized management of various peripheral devices, it reduces the number of smart components, simplifies fault detection, and optimizes maintenance costs.

ANDROID 9/10/14
CORTEX A53
GPU ADRENO 506/KRYO TM 619
OCTA-CORE 1.8 GHz / 2.0 GHz
BATTERIA di BACKUP
DISPLAY 10.1" 1K NITS 16:9
ACCELEROMETRO 9-ASSI
WIFI 2.4GB/5G
DIGITAX SDK
RAM 2GB - 3GB / ARCHIVIO 16GB-32GB
GPS
4G LTE
BLUETOOTH 4.2 / 5.1

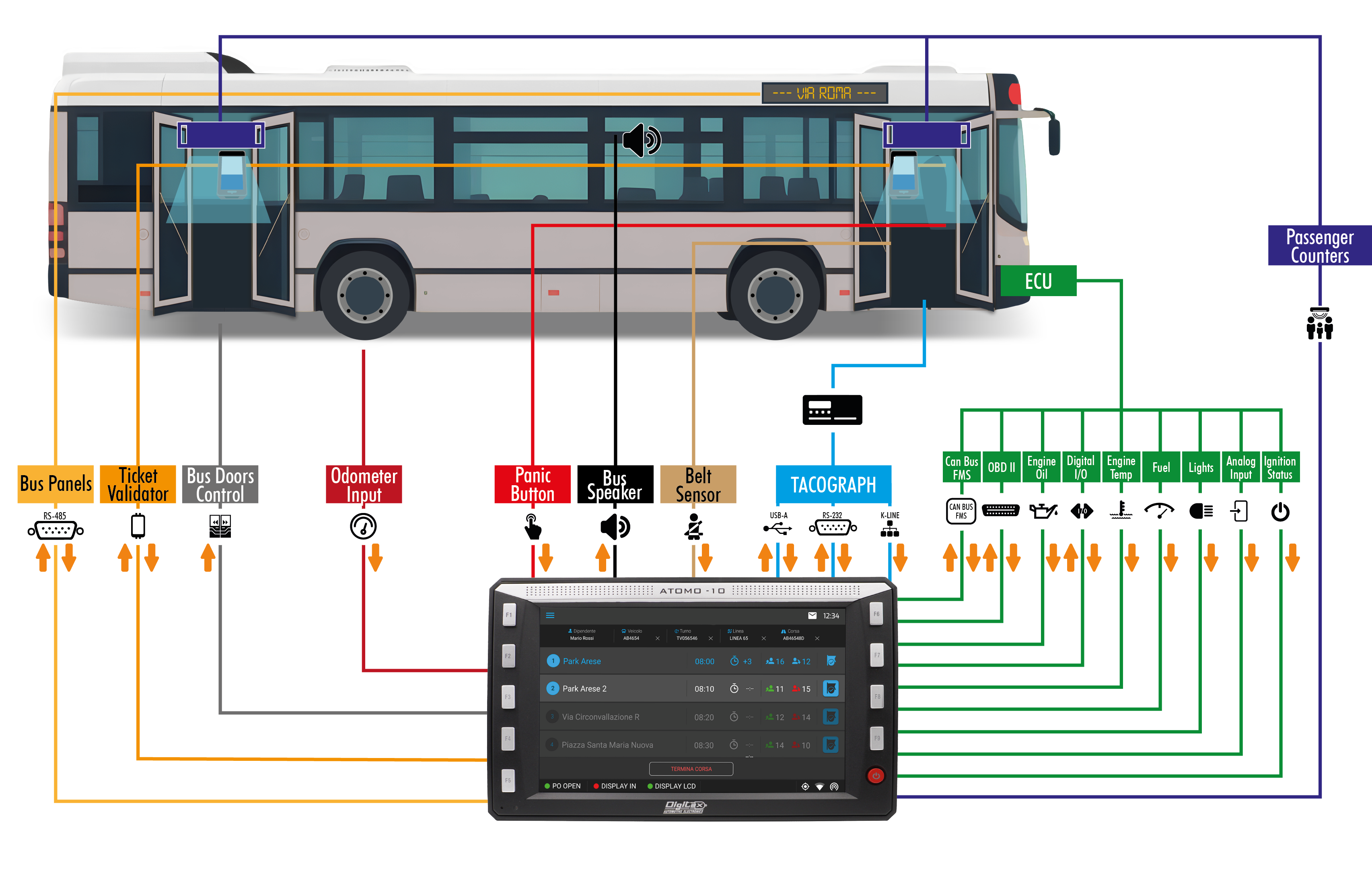

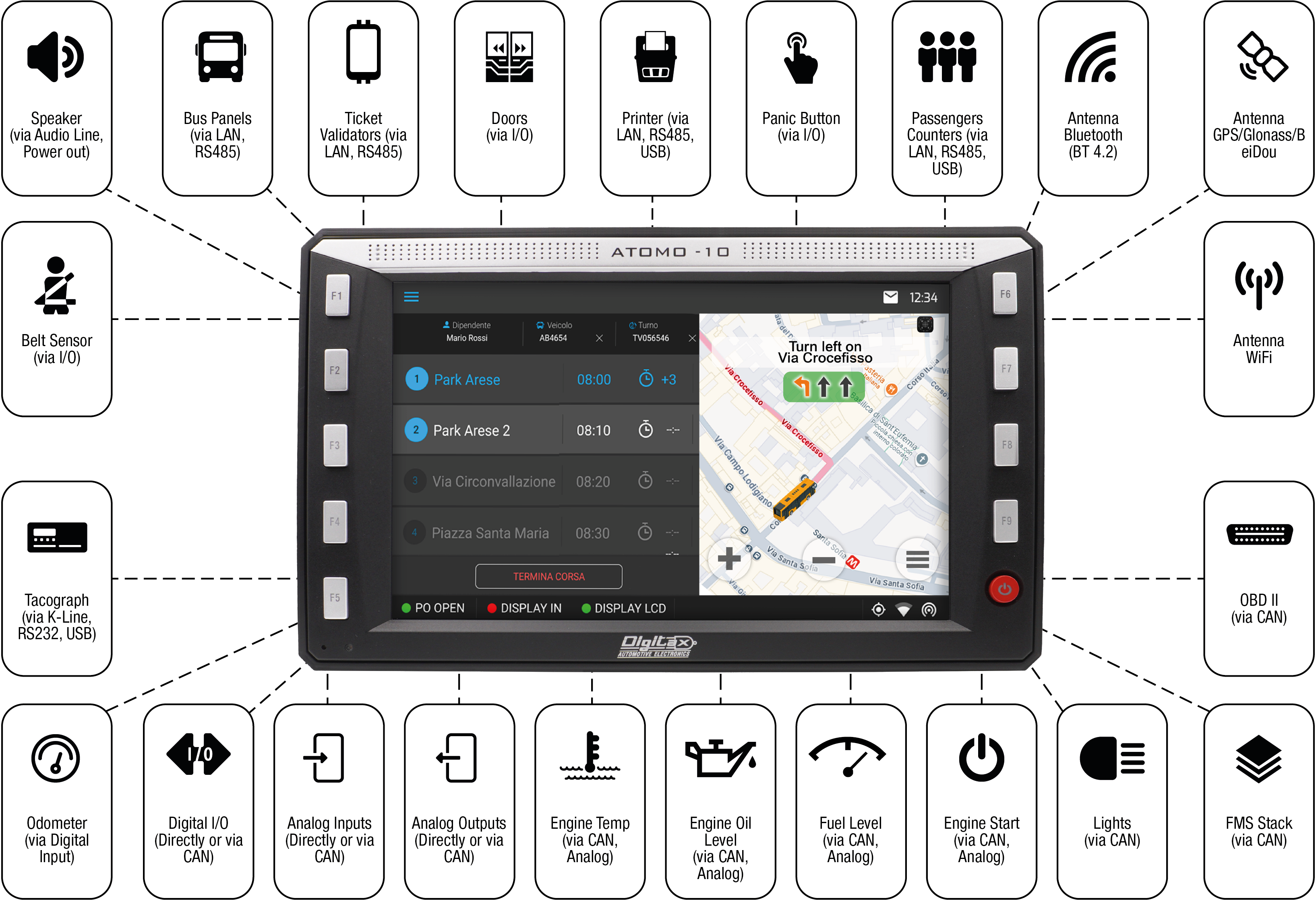

ATOMO – 10 Direct Interfaces

ATOMO - 10 Available Configurations

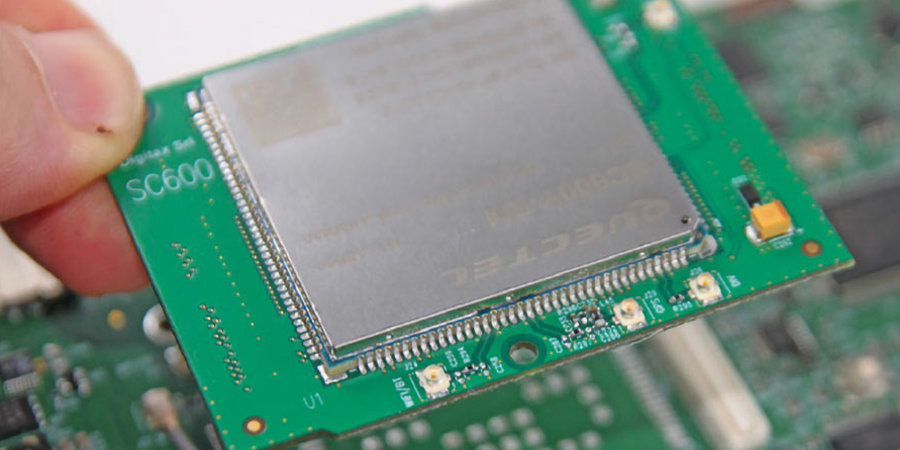

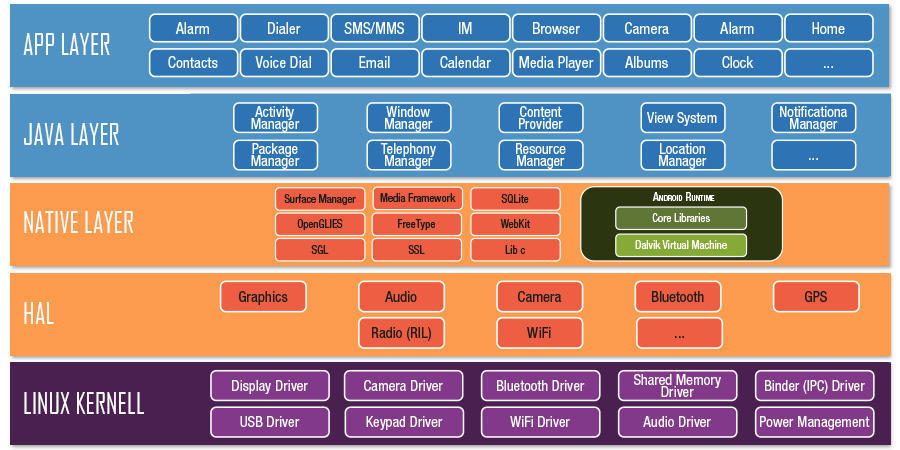

Upgradable Android Platform

Digitax ATOMO – 10 MDT supports the Android Platform On Module, enabling CPU, OS, and connectivity upgrades. Available chipsets include QUAD Core, OCTA Core, and OCTA Core with a 5G NR Modem. Digitax offers AI capabilities, enhanced processing power, and updates for the OS and peripherals.

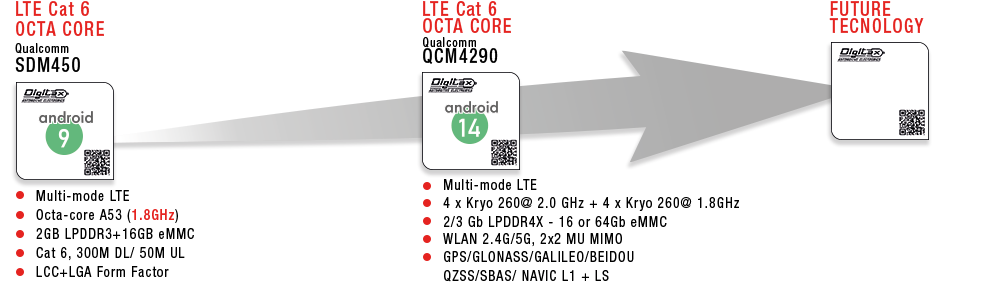

Available Android Platform Configurations

Qualcomm Octa Core SDM450 CPU with 4G LTE CAT6 modem and Android 9.x/10.x OS.
Qualcomm QCM4290 CPU with 4G LTE modem and Android 14.0x OS.

Screenshot 2025 02 09 alle 14.54.59

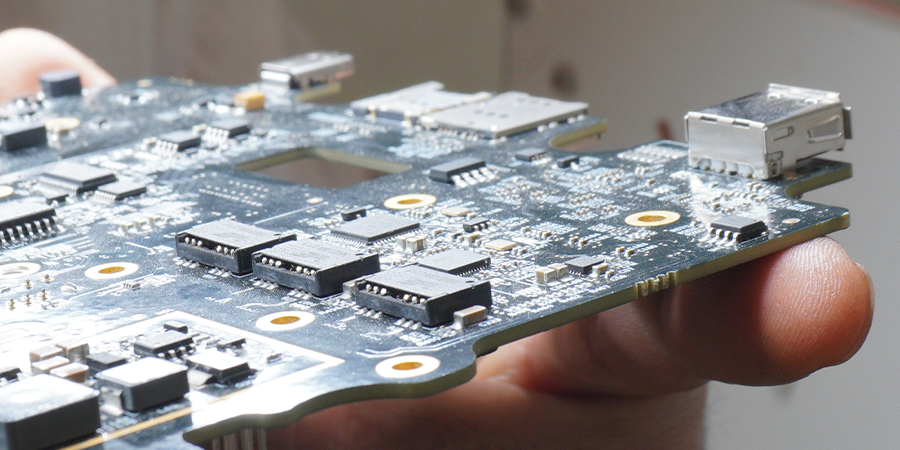

Dual CPU

PRIMARY CPU

The Octa-core processor, running Android 9, 10, or 14 with 4G LTE connectivity, ensures high flexibility and computing efficiency while reducing power consumption.

SECONDARY CPU

The dedicated AITP module manages key automotive functions such as power management, safe shutdown, wheel pulses (odometer), distance/speed calculation, WakeUp on Ring, and OTA software/firmware updates. Always active and remotely programmable, it enables automatic firmware and fare updates while controlling power supply to the device and peripherals.

Fleet and Security Applications

The device integrates the latest technologies to meet any professional application in fleet management and security.

Ideal for fleet management, AVM, ticket validation, task assignment, service certification and navigation, it is a reliable, professional, compact, flexible, modular, and automotive-certified Mobile Data Terminal. The 4G LTE or 5G LTE modem ensures highly reliable communication with back-end servers.

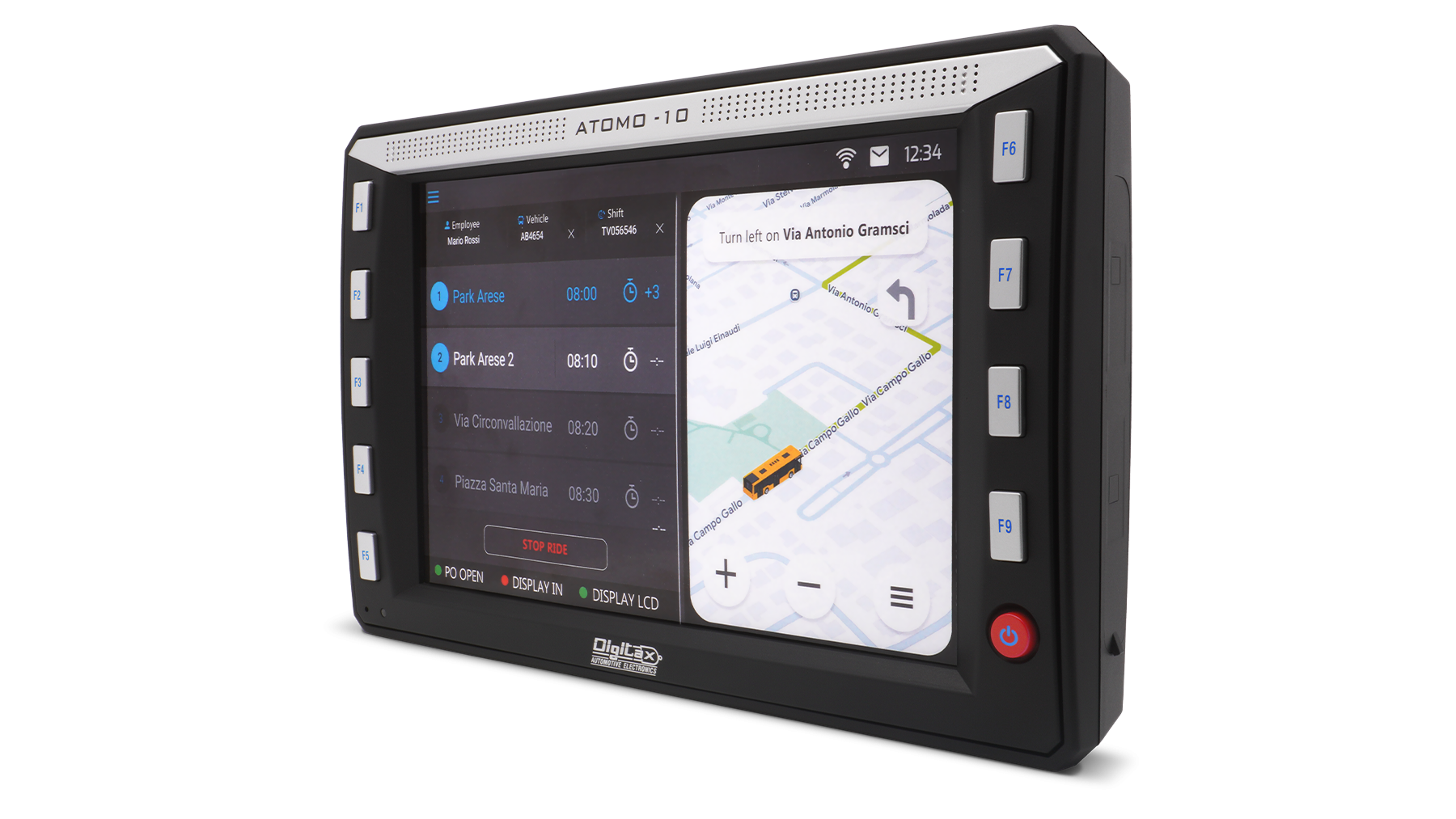

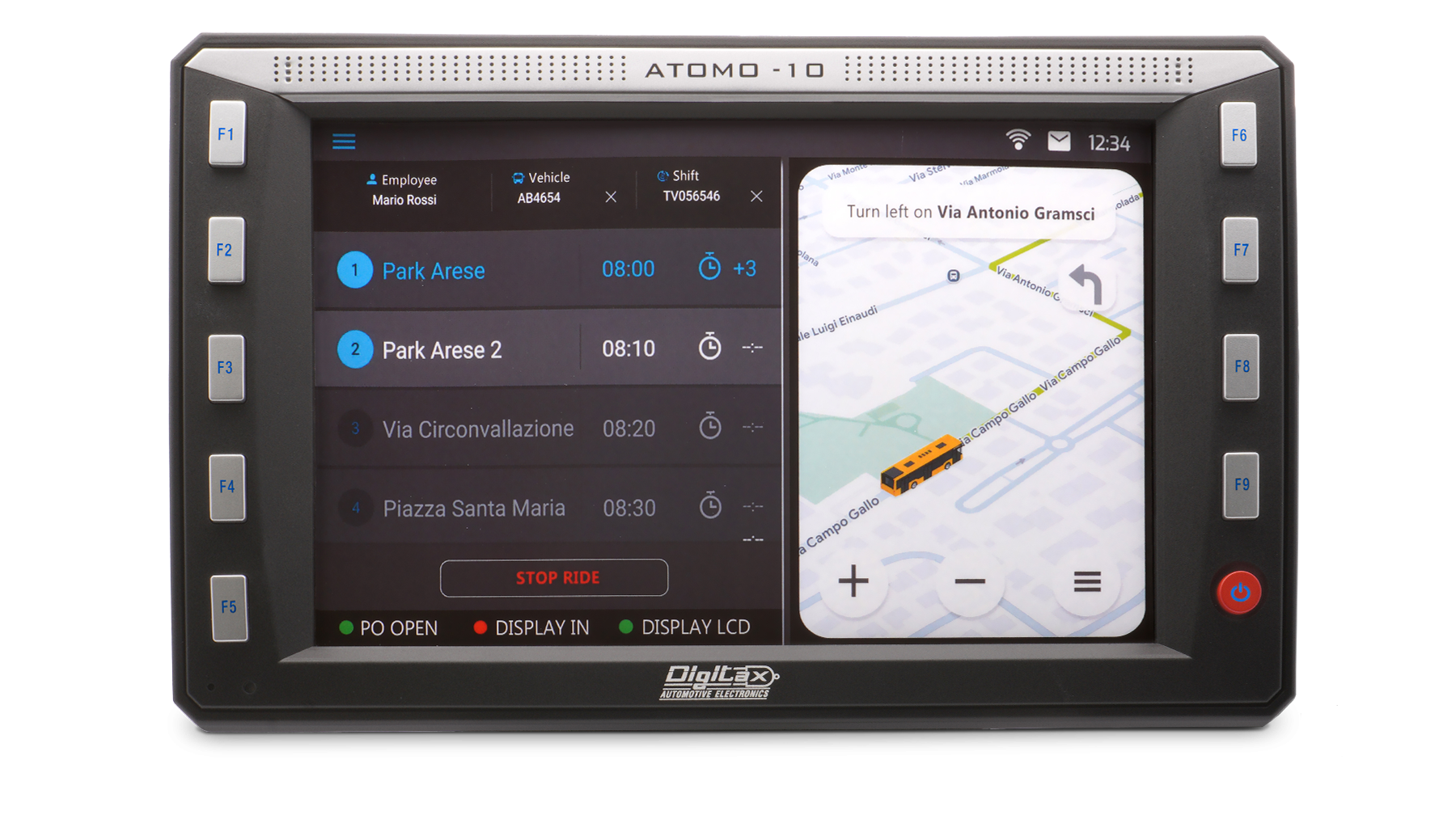

Customizable User Interface

The 10.1” Full HD 1KNIT 16:9 TFT display offers versatile and intuitive applications, thanks to the integrated capacitive touch controller and 10 LED-backlit function keys.

These dedicated keys facilitate common operations, extending the touchscreen’s lifespan, while the ambient light sensor automatically adjusts brightness for optimal visibility in any condition. The programmable Smart Power (ON/OFF) button supports advanced features, including activation or deactivation of Ghost Mode (simulated shutdown).

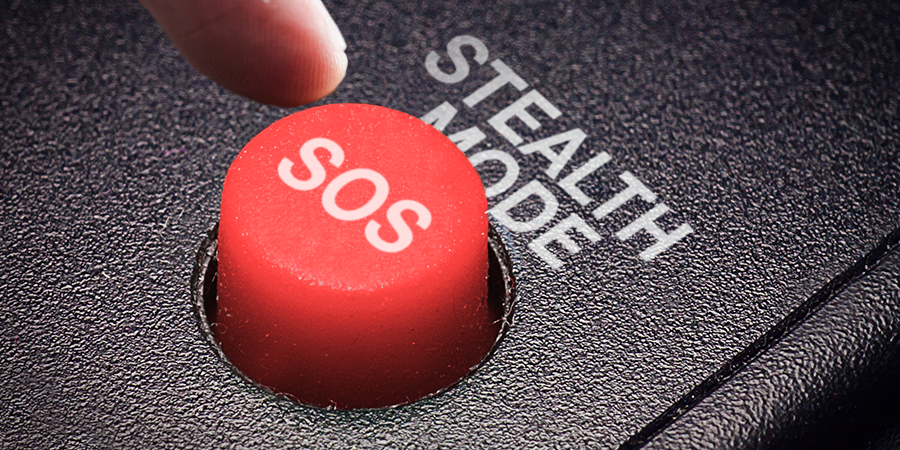

Stealth Mode

The Stealth Mode keeps the system active while disabling the display and audio, making it useful in various scenarios:

Driver Monitoring: The "Wake Up on Ring" function allows remote activation to check the vehicle’s location, record audio, and collect data.
Ghost Mode: When the device is turned off, it enters Stealth Mode, remaining operational with reduced power consumption.
Alarm Management: If the device is off, pressing the alarm button activates Stealth Mode, discreetly sending alerts, GPS location, screenshots, or audio streams to the control center.

Software Customization

The Digitax R&D team can customize and keep every software module of the system up to date.

In addition to technical support, Digitax provides libraries, code samples, and all necessary resources to enable customers to develop their own custom and proprietary applications.

Digitax also ensures dedicated technical support for its clients.

Reliability

The device is designed to withstand power failures during vehicle startup and voltage surges up to 32V. It is also immune to ESD and EMC interference.

Thanks to the AITP processor, user applications and the Android operating system can safely shut down in the event of a sudden disconnection from the main power supply.

Input And Outputs

A wide range of I/O channels is available, including three Hi-Speed Host ports, one USB Client port, and a total of seven RS232 and RS485 serial ports.

Additionally, special programmable digital I/Os enable bidirectional interaction with external devices and equipment.

ARM Cortex-A5364-bit Processor(Octa-core)

Qualcomm©Adreno™ 506 GPU

Android 9/10/14

Cat 6Max 300Mbps (DL)Max 50Mbps (UL)

IEEE 802.11a/b/g/n/ac

BT4.2 (BR/EDR+BLE)

GPS+GLONASS+BeiDou

Powerful MultimediaFunction

LCC+LGA Package

Display 10.1" 16:91k NITS

Dual CPU System

9 Axis Accelerometer

IP65

Digitax SDK

Specification

CPUs (Option 1)

Fanless Device with Primary CPU Qualcomm SDM450 chipset,
Octacore ARM Cortex-A53 64-bit CPU @1.8GHz. Adreno 506 GPU: OpenGL ES 3.02,
OpenCL3, content security, and decreased power consumption

CPUs (Option 2)

Fanless Device with Primary CPU Qualcomm QCM4290 Octa-core ARM Cortex 4 x Kryo 260@ 2.0 GHz + 4 x Kryo 260@ 1.8GHz

GPU

Qualcomm® AdrenoM 506 graphics processing unit (GPU) with 64-bit addressing

GPU (Option 2)

Qualcomm KryoTM 610 graphics processing unit (GPU) at 950 MHz

Secondary Intensive Task CPU Processor (AITP)

Secondary CPU
The dedicated AITP (Automotive Intensive Task Processor) supplies the functionalities required by the automotive market like power management, Safe Shutdown, Wheel Pulses Odometer, Distance and Speed calculation, Wake-Up on Ring, Over-the-Air services for software and firmware updates. The AITP is OTA programmable for remote automatic firmware and tariff upgrade and is always powered ON. It can also switch ON and OFF the device and the peripherals.

Ram Memory

+2GB LPDDR

Storage Solid State Hard Disk Memory

16GB EMMC

External SD

Up to 256 GB for external storage

Communication Modem 4g

LTE Cat 6 modem supporting 2 × 20 MHz carrier aggregation, with maximum download speed up to 300 Mbps.
Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage.
2 Sim Card slots

GPS Receiver

Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

Antennas

Internal GPS-WiFi-BT-LTE
External GPS-WiFi-BT-LTE Rugged Combo antenna (option)

Multimedia

Audio: MP3, AAC+,eAAC, AMR-NB, -WB, G.711, WMA 9/10 Pro.
Video: Encode:30fps 720P (H.264), 30fps WVGA (MPEG-4/VP8).
Decode:30fps 1080P (H.264/MPEG-4/VP8/H.265 DivX4/5/6), 30fps WVGA (H.263)

Connectivity

Wi-Fi Connection2.4G/5.8G, 802.11 a/b/g/n
Bluetooth class 2BT2.1+EDR/3.0/4.1 LE. / 5.1

Operating system

Android 9.x/10.x

IP protection

IP65 waterproof sealed

Dysplay

Ergonomic and orientable 10.1” TFT IPS Normally black Transmissive Display with 1920x1200 pixel resolution (1280x800 500 cd/m2) and 16.7M colors.
Aspect Ratio 16:9.
Display clearly viewable with 1000 cd/m2 or 500 cd/m2.
Ambient Light Sensor with Automatic Regulation

Touchscreen

Capacitive Touch screen.
Extendend Temperature Range.
IK8

User Interaction

Operation with capacitive touchscreen or dedicated and programmable Function Keys (10 Keys)

USB Port

UpTo 3 X USB Host (with USB Support for Mouse and Keyboard) Hi-Speed
1 USB Device

Serial port

1 External Full Modem RS232 Port.
2 External TX/RX RS232 / RS485 Port.
4 External RS232 Serial Ports (option)

I/O ports connection

4 Digital Inputs.
3 + 5 Power Output Ports.
Dedicated Ignition input.
2 Analog Ports input.
External Speakers output.
External Microphone input.
Odometer input

Can Bus

Can Bus Interface OBD-II OBD2-FMS-SAJ1708

Alarm and Security

Panic Button input / Emergency Switch input.
Stealth Mode Controller (system ON display, audio and lightings off)

Power on key

1 Smart Power On/Off button

Connectivity2

Ethernet: 10/100 Mbps LAN Controller.
Witch 4 different switch ports

Developments Tools

Adb/Android Studio IDE with USB debugging support SDK for Android O.S.
Serial port driver and test tools.
Digital I/O driver

OS Image Loader

Over The Air (OTA) OS image loader or microSDHC Card Image Loader

Power supply

8 - 32 V with Surge Protector

Battery

Internal Battery Package (option) for controlled shutdown without any damage risk

Operating Temperature

-20°C to 75°C

Humidity

Humidity up to 95% non-condensing

Vibration

Vibration Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min 3 axis, 1hour/axis.
